Static Fire Test of Hybrid Motor at FAR, 2021-04-17

Dave Nordling, Reaction Research Society


Based on the recent lacking performance of the Contrails H222 nitrous oxide commercial hybrid motor, a pair of static fire tests were conducted to improve the ignition and severance of the nylon fill line. The latest of these static firings was conducted at the Friends of Amateur Rocketry site south of the RRS MTA on 4-17-2021. This was done for simple convenience since I was unable to attend the MTA launch event in the week prior. Mark Holthaus and John Newman oversaw my static firing and offered good advice. Fellow RRS member, Dmitri Timohovich, joined me that day and brought his four channel firing box to conduct the remote fill and fire operations of the hybrid.

Dmitri connects the fill manifold to the nitrous oxide bottle at FAR
Orange fill and firing box for the hybrid motor
Fill, drain and firing circuit for a Contrails hybrid rocket motor. The separate vent solenoid valve hasn’t been added. Weight scale is also a separate feature and not necessary for operation.

Nylon is one of the stronger polymer tubing materials which can handle the 900 to 1200 psig nitrous oxide pressure when flow is supplied from the solenoid valve controlled manifold. The problem is that this strength makes it difficult to quickly and cleanly sever the Parker NBR brand, 3/16” OD fill line allowing the nitrous oxide to flow against the fuel grain while getting reliable ignition.

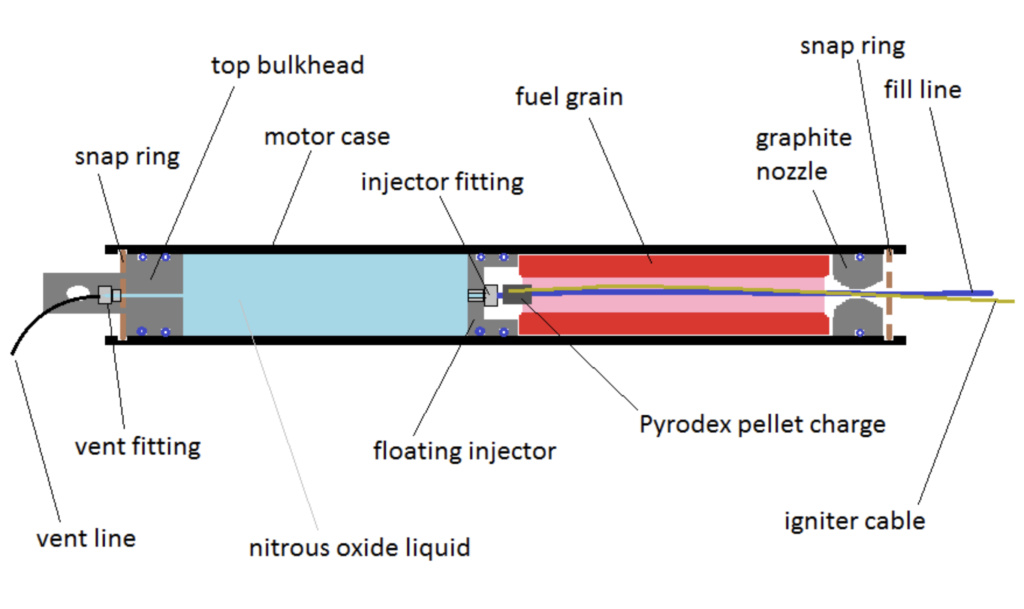

The original ignition method as designed by the manufacturer is a small resistor in place of an electric match and the use of a Pyrodex pellet which is essentially a pressed cylinder of black powder. The first flight attempt of the nitrous oxide hybrid rocket used this method but was not successful.

Contrails Rocketry, H222, 38mm, 16-inch high powered nitrous oxide hybrid motor

Earlier builds of the hybrid motor used electric matches and small scraps of composite propellant grain for a swifter and hotter ignition. The first two flights showed evidence of the fill line remaining connected. A better means of ignition and fill line severance was needed.

February 2021 launch of the hybrid motor in Larry’s 3-inch rocket body. It is clear that a hot plume is exiting the nozzle but the sharp arc to the north seems to indicate that the fill line is still attached.

The composite propellant is an ammonium perchlorate, aluminum powder and HTPB binder mixture with some red iron oxide used as an accelerant. These scraps were from RRS member, Larry Hoffing’s, small solid motor that he unsuccessfully tested at the MTA in 2019.

The Contrails H222 motor was mounted upside down due to the lack of a proper motor retainer feature. The static firing was the primary purpose which resulted in a feeble puncture of the filling line and no subsequent ignition.
The aft end of the hybrid motor mounted for static fire at the RRS MTA on 3-20-2021
Failed ignition resulted from the 3-20-2021 static firing. Disassembly revealed an excessive amount of electrical tape and an uneven burn around the fill line circumference was the most likely cause.
Previous solid propellant grain motor test in 2019 was a failure, but the remaining tailings from the casting were useful in boosting the ignition power in prior hybrid motor tests

The last static test at the MTA failed to achieve ignition and only created a small tear in the fill line without achieving ignition of the grain. The composite fuel grain fragments were getting clean ignition but the electrical tape wrapping method I used failed to adequately focus the high temperatures to getting clean ignition and severance of the black nylon fill line.

At John Newman’s suggestion, we used a small ring of composite propellant grain at the forward end inside the hybrid high-performance (HP) fuel grain. These were made from a 22mm cylinder that was cut to a 3/4-inch length and drilled out to a 3/8-inch hole size which is roughly twice the diameter of the black nylon filling line passing through. This larger hole would allow the electric match head to be in close contact with composite propellant ring. As the solid propellant charge burns it focuses the tremendous heat of combustion on the nylon fill line causing it to soften, extrude and cleanly sever.

John Newman uses his lathe at his shop to gently machine fuel grains for custom applications.
The ring of 22mm diameter composite propellant grain fits within the head-end of the hybrid fuel grain and can be pressed flush to the edge. A 3/8-inch hole is run through the 3/4” long segment to allow the nylon fill line to pass through with enough room for the electric match head
Floating injector (left) with the nylon fill line pushed into the Parker push-to-connect fitting. Composite propellant grain is pressed in flush to the edge and electric match head can be seen beofre it is secured to the fill line to get the proper position when the motor is assembled
Snap ring, graphite nozzle and steel nozzle washer finish the motor grain assembly inside the 16-inch aluminum body of the H222 model
The complete motor assembly clamped into the unistrut holding fixture. The clear vent line at the head end must protrude to the outside to give a visible and audible indication when the oxidizer volume is filled with liquid before committing to firing.
Dmitri Timohovich makes adjustments to the clamps holding the hybrid motor in place. Peak thrust is just above 200 lbf according to the official thrust curve data for this H222 model.
Four channel firing box sits at a safe distance from the static fire test stand.
Dmitri Timohovich (left) and Dave Nordling (right) pose next to the unistrut mounted static fire mounting of the Contrails Rocketry H222 high-powered 38mm hybrid motor ready for testing at the FAR site on 4-17-2021

With everything in place, we called over the pyrotechnic operators in charge for this FAR event. After inspecting the connections and describing the fill and fire procedures, we were authorized to begin the short filling process.

Successful ignition of the hybrid motor at FAR

The hybrid motor was loaded, fired, reloaded and fired again. Both times stable ignition was achieved and the fill line dropped out of the motor as expected. We had to abort the initial second firing as visual confirmation of the nitrous oxide completing fill was not apparent. Given the hybrid motor has a small weep hole in the head end of the motor means that given time the nitrous oxide will leak out safely. The clear 1/8” acrylic vent line had become tangled in the unistrut obscuring the liquid plume. Trimming the acrylic vent line helped to keep the tip more visible on the second and last firing that day.

Cheap and simple, the 3-inch Little John from Mad Cow Rocketry

The next step will be to purchase a 75mm rocket body able to integrate the 16-inch long, 38mm standard hybrid motor inside. The 3-inch Little John rocket from Mad Cow Rocketry was selected and should arrive soon. With luck, the rocket can be built and ready for 1010-rail launched flight at the next RRS MTA event on 5/1/2021.

The RRS is thankful for the support of FAR at their facility for this static fire. Dmitri and I conducted a safe dispoal burn of the scrap propellant. I was able to acquire a few more propellant ring segments for subsequent tests of the hybrid in flight. Later, we plan to revisit the Pyrodex black powder charges with the electric resistors as the initiator. It is not clear if this will be as effective as the high temperature composite grains and an electric match, but it is worth a try.

MTA Launch Event, 2021-04-10

by Keith Yoerg (RRS Secretary)


The RRS held a launch event at our Mojave Test Area (MTA) on April 10, 2021, the day after our monthly meeting. COVID-19 still remains a threat so everyone continued to observe protective protocols – masks & physical distancing. For the first time in months, we had a day with great weather for launching rockets and we made the most of it! We had low-power, high-power, and experimental solid rocket launches, another launch of Bill Inman’s Solar Cat, the maiden voyage of Wolfram Blume’s Gas Guzzler, and a static fire of Larry Hoffing’s solid power motors. Osvaldo Tarditti was our pyrotechnic operator in charge.

Activity around 9:30 am at the MTA – prep work ongoing for CTRL+V (left) and Solar Cat (right)

CTRL+V (USC RPL)

Preparation for the first launch of the day: CTRL+V actually began the day before launch with motor integration and other preparation work taking place at the MTA site. On the morning of the launch, the team from the USCRPL installed the rocket on the launch rail, which was then raised into place south of the MTA’s vertical test stand. Wires running from the rail were staked to poles and hammered into the ground to provide additional stability for the rail. Several launch crew members can be seen prepping the rocket above, and a still image of the launch of the rocket can be seen below.

Launch of USC RPL’s CTRL+V, the smoke took a strange path up the rail faster than the rocket!

The rocket flew on a 6″ experimental rocket motor. A specific procedure was followed prior to launch, under the supervision of the pyro op, which included radio go/no-go call outs from several teams including tracking, avionics, and even a drone that took footage of the launch! All spectators and crew were in the bunker during takeoff at 11:04 am – ignition was prompt and rocket left the rail quickly and cleanly. The initial telemetry reported by the team indicated an altitude of over 11 km. Several members then went off on the daunting task of recovering the rocket from wherever it landed.

LUMINEER (BPS.space)

The next flight of the day came from BPS.space with the rocket Lumineer. This launch was conducted from one of the pads just west of the vertical test stand. The flight took place around 1:20 pm on a commercial Cessaroni “N” motor and was livestreamed to a reported 9,000 viewers on YouTube. The rocket utilized a “fly-away” rail guide to provide stability and eliminate the drag of rail buttons, which can be seen still in the process of falling from the rocket in the image below. The target altitude was 10 km, but telemetry was lost shortly after takeoff so the actual peak altitude was unclear after launch, and the rocket was not recovered for some time.

Launch of Lumineer from BPS.space

GAS GUZZLER (Wolfram Blume)

Wolfram Blume has been diligently making the pilgrimage to the MTA events over the last several months and the weather has been uncooperative for his chances of launching, but that finally changed in April! The maiden voyage of the Gas Guzzler took place from the pad just west of the vertical test stand. This flight was conducted to answer several questions about staging during the flight – so the ram jet second stage was flown empty and only the first stage, commercial solid rocket motor was used to power the rocket. A slow-motion (10% full speed) video of the launch can be seen here.

Launch of Wolfram Blume’s Gas Guzzler, it’s so calm the flag on the vertical test stand isn’t waving!

The ascent of the rocket was smooth, validating the rigidity of the rocket’s design and the stability when empty. The data from onboard altimeters confirmed that the ram air entering the 2nd stage was enough to separate the 2 stages immediately (0.1 second) after motor burnout which occurred at 1,440 ft. The parachute for the booster stage deployed successfully and that stage was recovered without damage. The ram jet, upper stage utilizes a dual-deployment of a drogue parachute at apogee and main parachute at 1,000 ft above the ground. While each of these deployments were successful, the main parachute did not pull out of the deployment bag so the stage landed hard and damaged a few parts. Fortunately, the 2nd stage is not the final parts intended for the full flight of both stages so there will not be delays to the project to rebuild. Wolfram collected lots of useful data and plans to add a GPS tracker and other upgrades before his next flight. We all hope the weather remains in his (and all of our) favor!

CHARLIE HORSE (Keith Yoerg)

Up next was the 12th flight of Keith Yoerg’s rocket Charlie Horse. This was the first flight test of the LoRa GPS tracking boards discussed in previous reports. There are several difficulties with getting the units setup properly, not least of which being the frequent firmware updates required to pair the board with the mobile phone app (2 updates in as many months). Powering up the boards the night before would have helped eliminate these struggles, but a successful launch was still completed, a slow-motion (10% full-speed) video of the launch can be seen here, which was on a commercial Cessaroni I280-Smokey Sam motor.

Keith Yoerg’s Charlie Horse seen through the smoke of launch – the camera was tipping over!

One issue still to be resolved with the LoRa trackers is a setting within the Meshtastic mobile application which trades off tracking range for the speed at which new information packets are sent. The “medium” setting was used on this flight but for rocket flights it may be advantageous to reduce the range (which is purported to be up to 10 miles) in favor of more frequent location updates. More testing will be done on future flights in hopes of developing a cheap, simple GPS tracking available for rockets flying at the RRS.

SOLAR CAT (Bill Inman)

Bill Inman’s solar-heated steam-powered Solar Cat rocket took to the skies around 4:31 pm. While the weather was perfect for most of the projects, the light overcast that can be seen in the pictures above proved problematic for the solar heating required for the best flight. In addition by launch time, the solar collector was at its westernmost limit so no more heating was possible. At launch the water temp was 370 F and was at 130 psi.

Bill Inman’s Solar Cat takes to the skies for it’s 2nd launch at the MTA

The flight reached 41 mph speed and achieved a 60 ft altitude. While this was an improvement on the first Solar Cat launch at the MTA, with additional heating there could be even more impressive stats. While he can’t control the clouds, Bill hopes to arrive at the MTA site the night before a launch in the future to increase the chances  of getting off a good test and launch before reaching our western limit of travel for the solar collector.

THE YOERG CHALLENGE (Dimitri Timohovich & Keith Yoerg)

With this being Dimitri’s last MTA event before leaving to Alaska for the summer, some other RRS members need to step up to the plate to keep the “Yoerg Challenge” alive. I have put out the call for more RRS members to build low-power rockets to fly at the MTA, and have left my 5-pad PVC launcher at the site for future launches. IT’S CHEAP, IT’S FUN, IT’S A CHALLENGE (and everyone is a winner)! What’s not to love? So get out there and build some model rockets!

The remains of the “Space Crater” – not covered in raw egg!

The entrants this month included Keith’s Big Bertha, Baby Bertha, and Hi-Flyer XL rockets and Dimitri’s Space Crater – which carried eggs in honor of Easter this month. Fortunately, Dimitri’s wife had the foresight to hard-boil the eggs because his rocket took the “Crater” part of its name a bit too seriously (the remains are shown above). A few of Keith’s flights before the GoPro battery died can be seen here.

SOLID MOTOR TEST FIRE (Larry Hoffing)

Larry Hoffing had some experimental solid rocket motors ready to test fire, but with all the other activity going on at the site he took the time to install a new “No Smoking” sign on the covered propellant loading area (shown below). Once things were a little less active, Larry was able to affix the motors and perform a test-fire. While the burns were long, they did not produce much thrust and need to be improved upon before use in a rocket.

No smoking sign added to the covered propellant loading area by Larry

CONCLUSION

In addition to everything detailed above, one of the USC RPL members flew a high power rocket to earn her Level 1 certification with the National Association of Rocketry, and Dimitri flew his water rockets with his son.

This was by far the most active event at the MTA in the past year and was an exciting day for anyone who likes to see rockets fly! Our next launch date has not been decided upon, but we hope to have an event in May to continue hosting at least one event per month at the site.

April 2021 Virtual Meeting

by Keith Yoerg (RRS Secretary)


The latest meeting of the Reaction Research Society took place this past Friday, April 9th and had 15 attendees – including another guest presenter. We kicked off the meeting by watching footage of Bill Inman’s Solar Cat launch from March, and a video of a liquid engine static fire from the Georgia Tech Yellow Jacket Space Program, who presented to the RRS about their project last month.

Screenshot of discussion during the monthly meeting

GUEST PRESENTATION – WILSON F/X LAUNCH CONTROLLERS

Brad Wilson from Wilson F/X launch controllers was our guest presenter for this month, continuing our recent discussions on wireless launch controllers. Brad started the company roughly 20 years ago with Dan Fox, after building launch controllers for their local high power rocketry club in the midwest. They began with a wired single pad controller, and have since expanded to build 64-pad systems as well as adding wireless firing capabilities. Their wired and wireless modules are in use by many local rocketry clubs including ROC and FAR, as well as others around the country. The largest motor known to have been flown on a Wilson F/X system was a size Q at a rocket launch in Black Rock.

Richard Dierking modeling the wireless launch module from Wilson F/X

RRS members had a lot of good questions for Brad, who was gracious enough to explain several different features and specifications of his system. Both the wired and wireless Wilson F/X systems use 32-bit encryption to send the firing signal from the control box (where the operator flips the switch) to the pad box (which supplies the current to light the ignition charge). This means the control box is required and the pad box cannot be used by itself to fire the motor. Brad sent along some product specification sheets for RRS members to review. Any member that would like a copy can request one by emailing the RRS secretary at: secretary@rrs.org

EVENTS AT THE MTA

After a brief discussion about the March launch event, the group began planning for the MTA event the day after the meeting. Several members with projects that have become staples at our recent events planned to join for the launch – including Bill Inman’s Solar Cat, Wolfram Blume’s Gas Guzzler, and “Yoerg Challenge” low-power model rockets from Dimitri Timohovich and Keith Yoerg. In addition, Larry Hoffing expects to have experimental motors ready for testing.

A low-power rocket launch near the MTA entrance

2 additional fights are expected – a rocket from the USC Rocket Propulsion Lab flying on an experimental 6″ diameter motor and BPS.space, flying on a commercial N sized motor. A write-up on these activities will be available within the next few days.

LAUNCH COORDINATION BETWEEN RRS & FAR

Rick Maschek joined for the meeting and began a discussion about coordination of launching activities between the RRS and our neighbors at FAR. With activity picking up at both organizations, it’s becoming more common for us to have event scheduled at both sites for the same weekend. Because of the proximity of our launch sites, rockets have been known to launch from one and land near the other.

Both groups are committed to safety when performing rocket activities, and improving communication about launches between on-site personnel in each organization has been identified as a priority. One option suggested is to alternate weekends between the organizations so that events do not overlap. Since weather and other schedule considerations can sometimes make that difficult to implement, it was agreed that radio communication should be established on days when both organizations are operating so that everyone will be aware of impending launches.

YOUTH OUTREACH CLASS

Frank Miuccio updated the membership on the status of the youth outreach programs that the RRS hosts, which seem likely to happen but are more complicated due to COVID-19 precautions. A classroom space large enough for adequate physical distancing has been found, but travel to the MTA site will likely not be possible until more restrictions are lifted.

Because the demonstration of rocket flights is one of the more engaging aspects of the class, Frank has begun developing a class plan that would allow for more hands-on activities without pyrotechnics. Soda straw rockets propelled by air and film canisters propelled by a baking soda & vinegar mixture are 2 ideas being pursued to give the students an exciting achievement until an MTA visit can be safely arranged.

NEXT MONTHLY MEETING

The next RRS monthly meeting will be held virtually on Friday, May 14th at 7:30 pm pacific time. Current members will receive an invite via e-mail the week of the meeting. Non-members (or members who have not received recent invites) can request an invitation by sending an email to:
