MTA launch event, 2021-07-23

by Dave Nordling, Reaction Research Society


Aerospace Corporation held a private launch event at the RRS MTA on Friday, July 23, 2021, for a group of interns soon to return back to school. I was the pyrotechnic operator in charge for this event with Drew Cortopassi as my apprentice. It was an ideal day for launch with low winds all day, but the Mojave summer heat was formidable as ever with temperatures reaching over 100 degrees before noon.

Chris and James Kobel prepare the Aerospace rockets for launch.
Although built quickly and with little if any paint, the rockets flew very well.
Ready for launch

This was the first time the company organized a build-and-fly type of event. RRS members also employed at Aerospace were able to recommend a common and reliable model rocket design with F-sized motors. The participants arrived early and were well organized and prepared. With a diligent safety officer from the company, no one had any significant problems with the heat. After our standard safety briefing, the event began with launching all 18 rockets prepared that day, with only one dud motor which was easily replaced.

izmir sex shop
RRS member, Drew Cortopassi, spots a rocket under parachute descending back to the launch site
Wire launchers were used for the Aerospace Corporation launches. RRS member, Chris Kobel, brought his wire launcher for the event.
Chris Kobel describes the proper procedures for loading and hooking up the rocket in preparation for launch.
izmir sex shop
With careful rehearsal of the safing and arming, Aerospace interns got to launch their rocket from within the old MTA blockhouse.

Spotting the rockets in flight is challenging even under open blue skies such as we had that fine day at the MTA. All but two rockets were recovered. Some drifted further away from the range and some weren’t able to recover all parts from thier rocket. As many wanted the keepsake, it is a lesson in amateur rocketry that recovery is not guaranteed.

The fun wasn’t limited to just the interns that day. I brought my small Estes Generic E2X and flew my first model rocket with a peppy little C6-7 motor. sakarya sex shop In doing so, I answered the Yoerg Challenge issued to all RRS members to build and fly a kit rocket as a team broadening effort.

The Nordling-built Estes Generic E2X returned to the launch site safely under parachute.
Safely at rest under calm winds at the RRS MTA
Simple and always fun, the Estes kit rockets are great.

I had asked a few members of the society to join me at this event which helped better monitor progress and more swiftly execute the event as the heat would become worse as the day went on. John Krell came out to fly one of his own hobby rockets with a new payload he’s been developing. After some problems with adapting to the wire launcher and keeping the rocket upright, he opted to use the sex shop sakarya alpha box-rails which fit his four-finned vehicle well. Sadly, his rocket suffered a motor failure and the flight would have to be for another day.

John Krell arms the payload before walking back to the blockhouse for firing.

The last project at this event was an experimental rocket built by Jerry Fuller, Jeff Lang and others at Aerospace Corporation. The details of this project were company proprietary but they were able to use a commercial high powered motor and booster rocket for what appeared antalya sex shop to be a successful flight from our 1515 rail launcher.

Jeff Lang of Aerospace Corporation making the final preparations on the specialized booster for the experimental flight
Jerry Fuller examines the booster on the rails before the payload is installed before flight.
A swift and straight launch from the RRS 1515 rail launcher.

The society was glad to support individual groups and companies with these kind of events. For organizations interested in having similar educational events antalya sex shop at the RRS MTA or simply using our site for conducting private projects, contact the RRS president, Osvaldo Tarditti.

president@rrs.org


MTA launch event, 2018-06-02

The RRS held a launch event at our private Mojave Test Area (MTA) with the students and staff of UCLA on Saturday, June 2, 2018. The event was overseen by our pyro-op, Jim Gross, with me serving as his apprentice. It was a good day for rocket launching despite the 100 degree temperatures that day. The winds were very low and almost still at certain times.

The horizontal thrust stand was fit checked at the RRS MTA concrete slab. All footplate holes aligned with the 1/2″-13 female anchor bolt holes. The load cell blocks mated up to the adapter plates. Concern was raised about the horizontal stability “wagging” of an alpha rocket if it were fired in the adapter as is. Osvaldo started a design to create an extension on the thrust stand which will better retain the rocket from excessive side loading.

RRS horizontal thrust stand passes fit check at the MTA, new primer coating added for rust protection

UCLA was completing a quarterly course in rocketry which featured the hard work of five student teams building their own amateur rocket using commercial F-class motors of different types.

UCLA students pose at the RRS MTA on June 2, 2018

The RRS was able to inspect each one of these model rockets and ask questions of the team members about its construction and the unique aspects used in their payload and vehicle design. Each of the teams ran flight stability tests at the UCLA wind tunnel to validate their design. Each rocket was fired from a rail launcher and a commercial firing circuit under the supervision of the pyro-op.

Six rockets from five teams at UCLA on display in the group photo (6/2/2018)

Before the flights of the student rockets, a test rocket was flown to check the wind speeds. Results showed low winds so the team flights proceeded. The winds at the launch site in the desert were very low throughout most of the day.

UCLA’s demo rocket to test winds before team flights.

UCLA prepares their custom rail launcher for their model rockets

One team attempted a two-stage rocket using a D-class motor in Stage 2. Results from all rockets were largely good. All were recovered and some were able to be relaunched.

UCLA’s Team Sharky prepare their rocket “Bruce” for his maiden voyage.

Each rocket flew an egg as a payload with a parachute recovery system. Each rocket also included a commercial altimeter chip which relayed the results to display on a cellphone application. Altitudes ranged from 1600 to 2400 feet.

UCLA also was static testing a hybrid motor adapted from commercial products to a design of their own. Two vehicle systems were built and alternately tested with replaceable HTPB-based fuel grain modules. UCLA brought a few nitrous oxide tanks to replenish their oxidizer supply. All seemed to go well, but the results were not good enough to proceed with a flight test as originally scheduled.

Dr. Mitchell Spearrin and Jim Gross oversee the hybrid rocket static firing procedure at the RRS MTA, 6/2/2018

UCLA’s Anil Nair prepares the hybrid motor for static firing at the RRS MTA, 6/2/2018

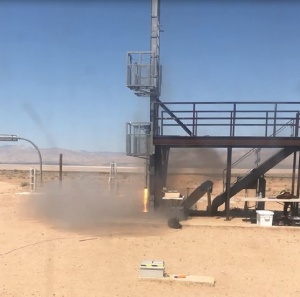

UCLA’s first of three hybrid motor firings, 06-02-2018

Results from first hybrid motor firing left a white residue around the outside of the nozzle

UCLA did buy two of our RRS standard alpha rockets which were custom painted in the blue and gold colors of the UCLA Bruins. At the end of the long day, UCLA opted not to fly their two RRS standard alphas and save them for another flight. The RRS and UCLA discussed flying an altimeter chip in a vented payload tube on the next UCLA flight of the RRS alpha.

Two RRS standard alpha rockets for UCLA

The RRS already had the micrograin propellant mixture ready so we proceeded with a flight test of our own RRS alpha rocket. We had plenty of daylight left in the summer month of June. For those that stayed at the MTA into the late afternoon, the RRS did conduct a first test of a payload recovery system in a standard RRS alpha rocket. This system was built by RRS president, Osvaldo Tarditti.

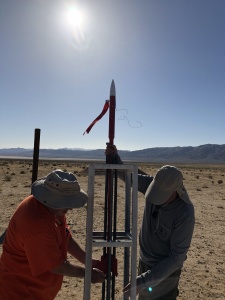

Jim Gross and Osvaldo Tarditti load an RRS standard alpha with parachute payload into the launch rails

An RRS alpha with its payload being installed.

Instrumented RRS alpha in the launch rack. A manual switch with red flag is used to arm the system before launch. This keeps the battery from depleting while waiting to launch.

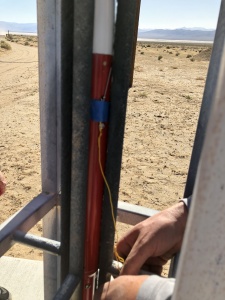

The payload timer is started when the rocket lifts out of the launch rails and the pin is pulled out by the yellow wire tied off to the launch rails.

Despite some problems initializing the payload one the first attempt at the launch rack, the rocket was successfully reset, reloaded and flown. The deployment of a parachute from inside an RRS standard alpha rocket’s payload tube with a successful recovery was the only objective of this flight.

In the still winds, the rocket didn’t drift very far from due west and the orange parachute was very visible against the clear blue afternoon skies once it reached lower altitudes. The alpha rocket booster portion was recovered, but the lanyard holding the nosecone and payload segment tore loose on deployment and was not recovered.

Lanyard failure lost the payload and nose with the timer circuit inside, 6/2/2018

Also, the orange parachute did show signs of localized overheating and melting from the 1-gram black powder ejection charge used to deploy the parachute.

scorching of the parachute from the ejection charge; parachute was still effective

The parachute did deploy fully and significantly slowed the descent of the rocket booster. With the low winds, the rocket did not drift very far downrange and was easily recovered 50 feet from the roadside going out west from the MTA

Osvaldo kneels behind his RRS standard alpha parachute system successfully flown at the MTA on 6/2/2018

I took several photos of the assembly and loading process. Osvaldo has promised to explain the full details of his parachute system and deployment timer. The RRS will definitely reattempt parachute recovery with our alphas and hope to fly again at the next event.

As a final step, we make sure to burn off our residual propellants. Jim Gross set this up near the launch pad and used the firing system already in place at the bunker.

Pyro-op Jim Gross prepares to safely dispose of residual micrograin propellant at the RRS MTA

Residual micrograin propellant safely burns up at the end of the day

At the end of the propellant burn-off, the smoke cloud lazily lingered as it rose away from the site. Taking several minutes to do so, this was a very visual reminder of just how favorable the winds were that day.

minutes later, a spent micrograin propellant smoke cloud slowly drifts away in the low winds at the MTA

If there is anything I have missed or misstated, please let me know.
secretary@rrs.org

The next monthly meeting is this Friday, June 8th at 7:30PM. Discussion of the UCLA event and our next event with LAPD CSP will certainly be on the agenda.
